Football Field Introduction

- Jan 31, 2019 -

football artificial grass

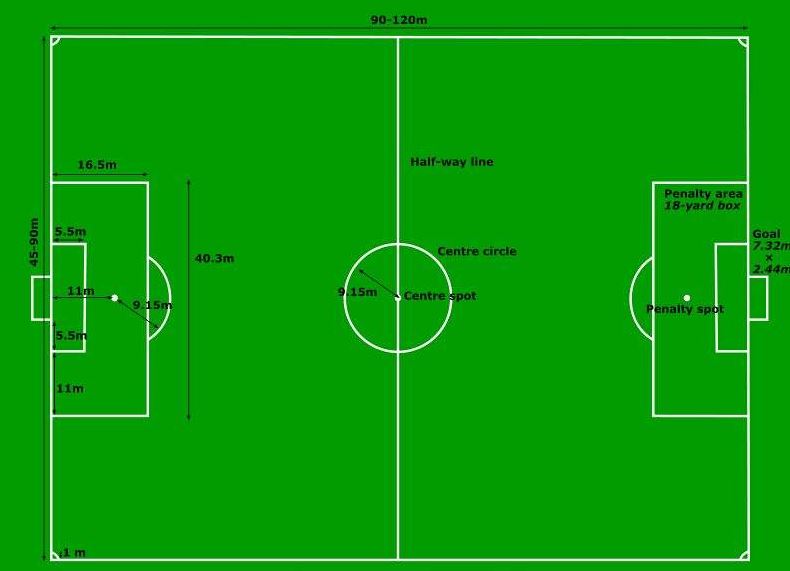

(1) 3-line

A. Side line: The longer two lines are called side lines;

B. End line or goal-line: The shorter two lines are called end lines;

C. half-way line: draw a line across the court in the middle of the field, called the center line.

The line width must not exceed 12 cm.

(2) Three districts

A. Goal-area: On the goal line at 5.50 meters from the inside of the goal post at both ends of the game field, draw a line with a length of 5.50 meters perpendicular to the goal line and one end connected to the goal line. At the other end, a connecting line is drawn parallel to the goal line, and the area within the range of the three lines and the goal line is called the goal area.

B. Penalty area: On the goal line at 16.50 meters from the inside of the goal post at the two ends of the game field, draw a line with a length of 16.50 meters perpendicular to the goal line, and the upper end is connected with the goal line. One end draws a connecting line parallel to the goal line, and the area within the range of the three lines and the goal line is called the penalty area.

C. Corner kick area: Take the intersection of the edge line and the goal line as a circle, and draw a quarter arc of each of the fields with a radius of 1 meter. The area inside the arc is called the corner area.



(3) 2 points

A. Penalty mark (also known as penalty point, 12 yards): Make a clear mark at the midpoint of the two goal line vertical direction to the field within 11 meters, called the penalty point.

B. kick-off point: There is a blue point in the middle of the red midline, which is the kick-off point.

(4) 1 arc 1 circle

A. penalty kick arc: Take the penalty point as the center of the penalty, with a radius of 9.15 meters, draw an arc outside the penalty area, called the penalty arc.

B. kick-off circle: The center of the field should be marked with an obvious mark. With this point as the center of the circle, draw a circle called the middle circle with a radius of 9.15 meters.

(5) Goal: The goal should be located in the center of each goal line. It consists of two horizontal crossbars with a distance of 7.32 meters, equal distance from the two-sided corner, and an upright post with a lower edge of 2.44 meters from the ground. To ensure safety, both the fixed or movable goal must be securely attached to the field. The width and thickness of the door post and the crossbar shall be symmetrical and shall not exceed 12 cm. The net is attached to the post and the crossbar and the ground behind the goal. The net should be properly propped up so that the goalkeeper has sufficient space for movement.

(6) Venue: rectangular, no more than 120 meters or less than 90 meters in length, no more than 90 meters or less than 45 meters in length (the length of international competitions shall not exceed 110 meters or less than 100 meters, and the width shall not exceed 75 meters or less 64meters).
